Place of Origin:China
Brand Name: EASY WELD
Model Number: EW-GB1960
H.S code: 8468800000
Package: 1pcs/pack, polywood box
Payment: TT/LC
Delivery: within 30days
 |
|
|
|
|

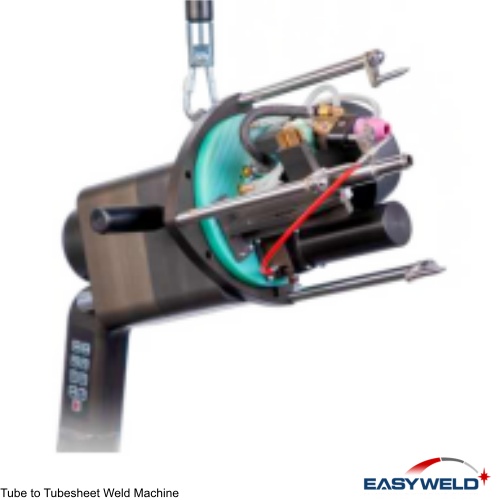

Tube to tube sheet welding machine
Description
The tube to tubesheet welding head is designed for butt joint or flat welding of 19mm-60mm pipes and plates, primarily used in industries such as pharmaceuticals, boilers, pressure vessels, and nuclear power. It features a built-in wire feeder that accommodates 1kg wire spools, and wire feed rollers with 0.8mm and 1.0mm wire diameters, ensuring sufficient wire capacity while maintaining portability.
Built-in circulating water cooling maintains the operating temperature of the welding head and positioning device, allowing for continuous welding over extended periods.
  Benefit
Widest and most commonly used welding range, industry-leading stability and weld quality.
Weldable materials include carbon steel, stainless steel, and titanium alloys.
Welding range: φ19mm~60mm.
Rotation speed range: 0.266rpm-5.31rpm.
Total cable length: 5m, suitable for factories or fixed construction sites.
Cooling water circulation.
Improved head and transmission system materials for greater durability and more stable weld quality.
Capable of handling more specialized welding requirements (such as specific fillet welds).
Customizable flexible chucks or positioners. |
