Applications:

Suitable for chemical pressure vessels, power plant boilers, nuclear power equipment, food and pharmaceutical equipment, shipbuilding and marine engineering, and defense industries. It can perform saddle-shaped welding on cylindrical shells and ellipsoidal heads.

Performance Features:

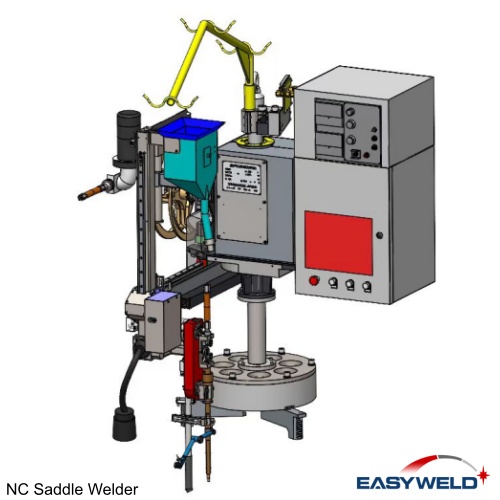

This equipment is a 4axis linkage CNC system, capable of saddle-shaped welding on curved surfaces such as cylinders and heads. Intersecting holes can be perpendicular orthogonal or eccentric perpendicularly intersecting.

The online teaching function can correct the theoretical intersection trajectory automatically generated based on input parameters, eliminating motion errors caused by non-standard workpieces or positioning, thus ensuring welding quality.

The equipment features parameterized input and automatic path routing, making actual operation simple and fast. Segmented welding parameter setting and intelligent control functions ensure welding accuracy and quality.

The chuck-type fixing method allows for mobile operation, offering flexibility and convenience.

Optional welding methods include submerged arc welding and gas-shielded welding.

Technical Parameters
