Orbital Tube-to-Tubesheet Welding Machine: Precision and Reliability in Critical Fabrication
( Updated: Jan.,16th,2026 ) |
An orbital tube-to-tubesheet (TTS) welding machine is a sophisticated, automated welding system designed to perform high-integrity, repeatable welds where tubes are joined to a tubesheet. This process is fundamental in the fabrication of heat exchangers, boilers, condensers, and other shell-and-tube equipment where leak-proof, strong, and corrosion-resistant connections are paramount. By automating the traditionally manual TIG (Tungsten Inert Gas) welding process, these machines ensure consistent quality, superior performance, and enhanced productivity in demanding industrial applications. Equipment Structure and Components
A typical orbital TTS welding machine is a modular system comprising several key elements:
1. Welding Power Source: A precision, computer-controlled inverter power source provides stable arc characteristics, often with pulsed current capabilities for optimal heat input control.
2. Orbital Welding Head: The core of the system. It is a compact, programmable mechanism that rotates the welding torch (or the tube/electrode) around the stationary joint. For TTS welding, heads are specifically designed to access the confined space of the tubesheet.
3. Tubesheet Clamping/Fixturing System: A rigid framework or modular clamping system that securely positions the tubesheet and aligns the tubes. This ensures perfect joint alignment and prevents distortion during welding.
4. Internal Mandrel or Back-Purging System: A critical component for root pass quality. An expandable mandrel is inserted inside the tube at the joint to control root penetration and shape, while simultaneously providing a backing inert gas (argon) shield to prevent oxidation on the weld's interior.
5. Control System: A programmable logic controller (PLC) or a dedicated industrial computer. It stores and executes weld schedules (programs defining rotation speed, current, pulse parameters, gas flow) and provides an interface for operator input and real-time monitoring of all welding parameters.
6. Wire Feed Mechanism (Optional): For filler wire welds, a precise motorized feeder can be integrated into the welding head to add material automatically.
Key Features and Advantages
1. Unmatched Consistency and Repeatability: Once a weld schedule is qualified, the machine replicates it perfectly for every single tube connection, eliminating human variability. This is essential for quality assurance in large equipment with hundreds or thousands of tubes.
2. Superior Weld Quality: Precise control over heat input, arc length, rotation speed, and gas shielding produces welds with excellent penetration, a smooth root pass, minimal grain growth, and reduced risk of defects like porosity or cracking.

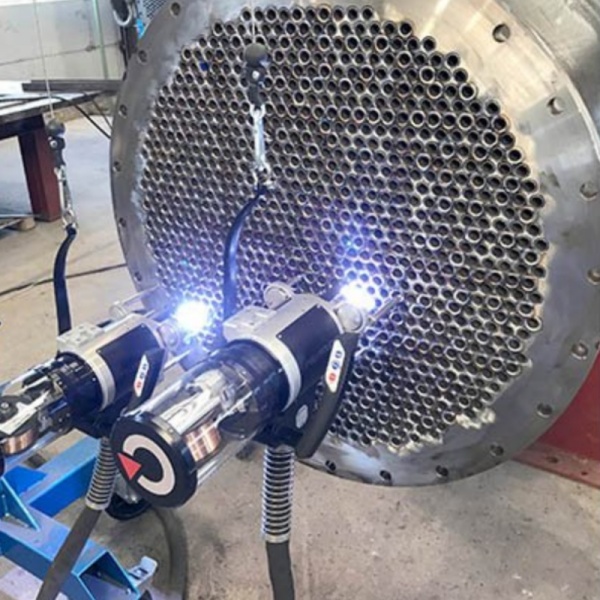

3. High Productivity: Automation significantly reduces welding time compared to manual methods. Multiple heads can often be operated simultaneously from one power source, dramatically increasing throughput.
4. Enhanced Access and Ergonomics: The compact welding head can operate in spaces where a manual welder's access is limited. It also removes the welder from potentially hazardous environments (e.g., heat, fumes, confined spaces).
5. Comprehensive Data Logging: Modern machines record all parameters (voltage, current, speed, gas flow) for each weld. This creates a verifiable electronic record for quality control, traceability, and compliance with strict industry standards (ASME, EN, PED).
6. Versatility: Machines can be configured for various tube diameters, materials (stainless steel, nickel alloys, titanium, duplex steels), and weld types (fillet welds, strength welds, seal welds, expanded-and-welded joints).
Applicable Industries and Fields
Orbital TTS welding machines are indispensable in any industry requiring the highest reliability in pressurized or critical service heat exchange equipment:
Power Generation:
Nuclear: Steam generators, condensers, and other nuclear primary and secondary circuit components where weld integrity is a supreme safety requirement.
Fossil & Renewable: High-pressure boilers, feedwater heaters, and condensers for thermal and concentrated solar power plants.
Oil, Gas, and Petrochemical:
Heat exchangers, coolers, condensers, and reactors in refineries, LNG facilities, and chemical processing plants, often handling corrosive or high-pressure fluids.
Marine and Shipbuilding:
Fabrication of boilers, oil coolers, freshwater generators, and central cooling systems for naval and commercial vessels.
Aerospace and Defense:
Manufacturing of fuel, oil, and hydraulic system coolers for aircraft and military vehicles.
HVAC&R and Industrial Manufacturing:
Production of large industrial chillers, ammonia evaporators, and process coolers.
The orbital tube-to-tubesheet welding machine represents a pinnacle of welding automation technology. By combining precision mechanics, advanced welding science, and digital control, it delivers the consistent, high-quality, and documented welds required for critical fabrication. Its adoption across energy, process, and heavy industries underscores its vital role in building the reliable and efficient thermal equipment that forms the backbone of modern industrial infrastructure. |
 |
|
