Pipe beveling is a critical preparatory step in welding, ensuring precise fit-up and high-quality, strong joints. For this task, the split frame pipe beveling cutting machine has emerged as a superior cold-cutting solution, especially for pipes and vessels where thermal distortion and material integrity are paramount concerns.

 Structure and Core Components

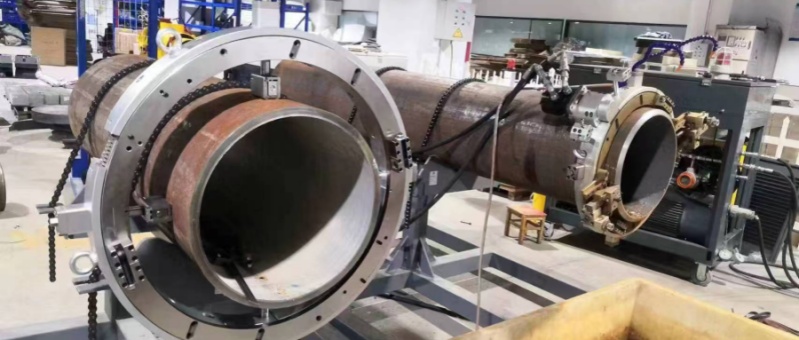

A split frame pipe beveling cutting machine is a modular, split-frame device designed to clamp onto the outside diameter (OD) of a pipe. Its key structural components include:

1. Split Main Frame/Chain:The defining feature is a heavy-duty rigid frame that wraps around the pipe. It allows the machine to be opened, positioned, and securely locked onto the workpiece without needing to slide over the pipe end.

2. Precision Gear Track: A geared ring integrated into the frame forms the foundation for the cutting carriage's movement, ensuring accurate rotation.

3. Motorized Cutting Carriage: This unit travels around the gear track. It houses the drive motor, feed mechanism, and the tool holder.

4. Drive System:Typically an electric or pneumatic motor that powers both the carriage rotation and the tool feed.

5. Tool Holder & Clamping System:A robust clamp that holds the cutting tool (single-point carbide toolbit or milling cutter) with minimal vibration. Fine-adjustment mechanisms allow for precise setting of the bevel angle (commonly 37.5°) and land (root face).

6. Centralizing System: Adjustable claws or rollers that ensure the machine is centered on the pipe for a consistent bevel around the entire circumference.

 Working Principle

The operation is a mechanical, cold-cutting process:

1. Mounting: The split frame is opened and placed around the pipe at the desired cutting location, then securely locked.

2. Centering & Setup: The centralizing system is adjusted to align the machine's axis with the pipe's axis. The cutting tool is set to the specified bevel angle and land thickness.

3.Cutting:The motor is engaged. The carriage rotates smoothly around the stationary pipe. Simultaneously, the feed mechanism advances the cutting tool incrementally with each revolution, performing a precise turning or milling operation. This continues until a complete, clean bevel is machined around the entire pipe.

Advantages vs. Thermal Cutting (Oxy-Fuel, Plasma)

Recommended using Products and Industries

This equipment is indispensable in industries where weld quality, material integrity, and precision are non-negotiable:

• Power Generation:Boiler tubing, high-pressure steam lines (alloy steels).
• Oil & Gas:Pipeline welding, offshore platforms, refinery piping (especially for corrosion-resistant alloys).
• Shipbuilding:Critical pipe welds on naval and commercial vessels.
• Chemical & Process Industries: Piping for corrosive and high-purity services.
• Nuclear:For primary coolant and other critical systems where material certification is strict.

It is best suited for pipe and tubular products where the primary need is a high-quality prepared weld edge.

Quality Differentiation Among Manufacturers

Not all pipe beveling cutting machine are equal. Key differentiators include:

1.Rigidity & Build Quality: High-end brands use heavy, vibration-dampening materials (precision-cast frames) for smoother cuts and longer tool life. Cheaper models may use lighter alloys, leading to chatter.

2. Precision of Components:The quality of the gear track, bearings, and feed mechanism dictates accuracy and repeatability. Top manufacturers guarantee tolerances within thousandths of an inch.

3. Versatility & Accessories: Quality machines offer easy-to-change attachments for J-preps, counterbores, and facing operations. Their clamping systems are more robust and adaptable.

4.Ease of Use:Features like quick-adjust angle setters, fine-feed dials, and tool-free centering systems enhance productivity and reduce error.

5. Durability & Support: Superior machines are built for harsh environments (e.g., offshore use) with sealed components. The most critical difference often lies in the technical support, availability of spare parts, and application expertise provided by the manufacturer.

 In conclusion, the split frame pipe beveling cutting machine is the tool of choice for critical welding preparation. It trades raw cutting speed for unparalleled precision, material preservation, and final weld quality. The investment in a high-quality machine from a reputable manufacturer pays dividends through reduced rework, superior joint integrity, and increased productivity in high-value fabrication.
