What capacity of weld positioner do you need?
( Updated: Dec.,22nd,2025 ) |
The Relationship Between Workpiece Center of Gravity Eccentricity and Positioner Load Capacity, and Guidelines for Selecting the Right Positioner
In welding automation, the positioning of workpieces using turning rolls, tilting rotators, or head-tailstocks is fundamental for achieving optimal weld quality, ergonomics, and efficiency. A critical, yet often overlooked, factor in the safe and effective operation of these positioners is the relationship between the workpiece's center of gravity (CoG), its eccentricity relative to the positioner's axis of rotation, and the resulting demands on the positioner's load capacity. Understanding this relationship is paramount for selecting the correct equipment.
The Core Relationship: Eccentricity and Moment Load
The rated load capacity of a positioner (e.g., 1000 kg) is typically specified for a centered load—meaning the workpiece's CoG is perfectly aligned with the positioner's axis of rotation. In this ideal scenario, the primary force on the positioner is the gravitational force (weight) of the workpiece, and the required drive torque is relatively low.

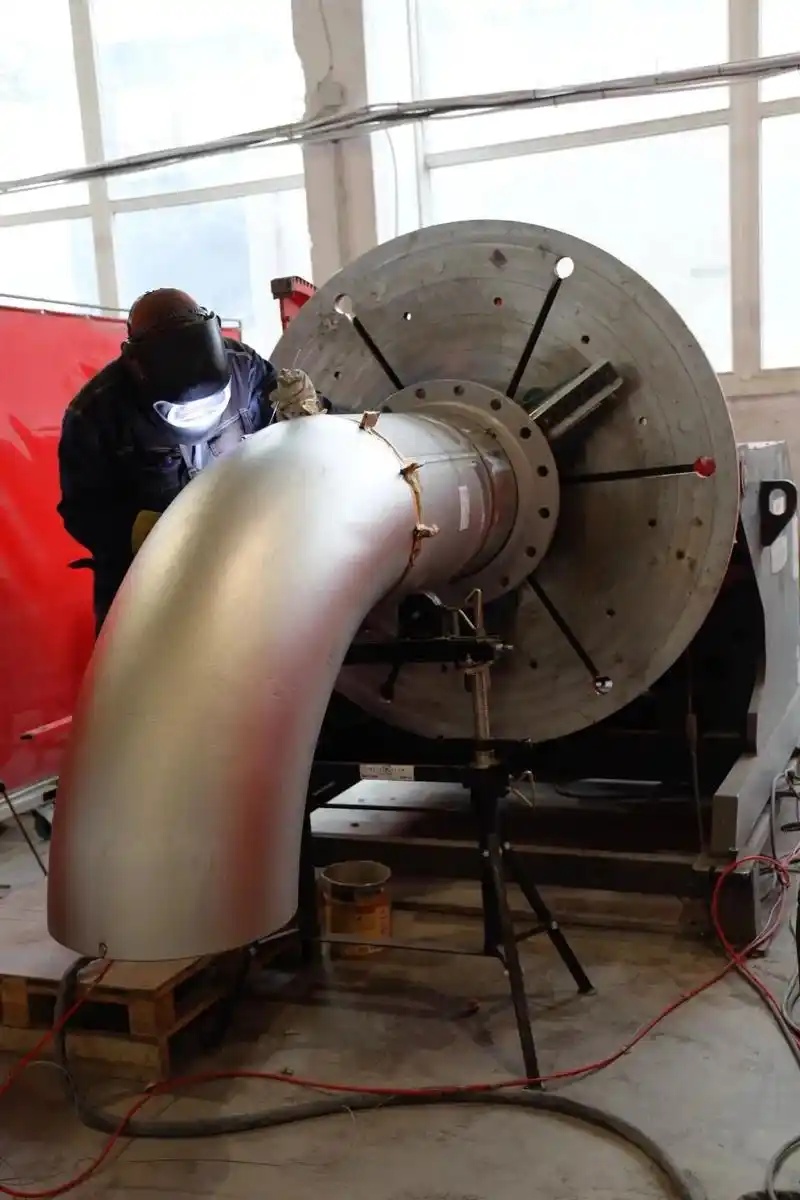

However, in practice, most workpieces have an irregular shape, causing their CoG to be offset from the rotation axis. This distance is known as the eccentricity or offset distance (e).
Creating a Moment Load: An eccentric CoG creates a moment load (or tipping moment) on the positioner. This moment is calculated as the product of the workpiece weight (W) and the eccentric distance (e).
Moment (M) = Weight (W) x Eccentricity (e)
The unit is typically Newton-meters (Nm) or kilogram-force-meters (kgf·m).
Impact on the Positioner:
Key Principle: Selecting a positioner based on weight alone is insufficient. The combined effect of weight and eccentricity—the moment load—is the decisive factor.
How to Select the Right Welding Positioner: A Step-by-Step Guide
1. Define Workpiece Parameters:
* **Maximum Weight (W):** Include the weight of all fixtures, clamps, and tack-welded sub-assemblies.
* **Maximum Center of Gravity Eccentricity (e):** Determine the farthest possible distance from the CoG to the positioner's planned mounting face or rotation axis. Consider all workpiece orientations during the welding sequence. Use CAD software or manual calculations for complex shapes.
* **Part Dimensions and Shape:** Affects fixturing and clearance.
* **Required Rotation/Tilt Speed:** For standard welding, slow speeds are typical; for polishing or inspection, higher speeds may be needed.
2. Calculate the Maximum Moment Load:
Using the formula `M = W x e`, calculate the worst-case moment. For example:
* Workpiece Weight (W) = 800 kg
* Max Eccentricity (e) = 0.25 meters (250 mm)
* **Required Moment Capacity = 800 kg x 0.25 m = 200 kgf·m**
3. Analyze Positioner Specifications:
When evaluating positioner models, scrutinize the manufacturer's datasheet for two key ratings:
* **Rated Load Capacity at a Stated Eccentricity:** e.g., "1000 kg @ 100 mm from mounting face." This directly states the acceptable moment.
* **Maximum Moment Capacity:** This is the definitive rating. Your calculated moment (200 kgf·m) must be **less than** the positioner's maximum moment capacity. **Always apply a safety factor (e.g., 1.5 to 2.0)** to account for dynamic forces during start/stop and acceleration. Thus, for a calculated 200 kgf·m load, select a positioner with a minimum moment capacity of 300-400 kgf·m.
4. Match the Positioner Type to the Application:
* **Headstock/Tailstock (Turning Rolls):** Ideal for long, cylindrical workpieces (pipes, vessels). The load is primarily weight-based, but eccentricity matters if the cylinder is not uniform.
* **Tilting Rotators (Single Axis or Two-Axis):** Best for complex, boxy, or asymmetric parts requiring multiple weld orientations. **Eccentricity is the dominant design consideration here.** Ensure the chosen model's tilt moment capacity is not exceeded.
* **Turntables:** For heavy, relatively flat parts where the CoG is low. Verify the overturning moment capacity.
5. Consider Other Critical Factors:
* **Mounting Interface:** Ensure the positioner's table size, bolt pattern, and fixturing options suit your workpiece.
* **Control System:** Match to your process (manual, semi-automatic, fully integrated with robot or welder). Speed control precision is crucial.
* **Duty Cycle:** Must match your production schedule (continuous operation vs. intermittent use).
* **Safety Features:** Mechanical brakes, overload protection, and emergency stops are essential.
Conclusion
The safe and productive integration of a welding positioner hinges on a thorough load analysis that prioritizes moment load over mere weight. By accurately determining the workpiece's weight and maximum center of gravity eccentricity, calculating the resulting moment, and selecting a positioner with a rated moment capacity that exceeds this value with a sufficient safety margin, engineers can ensure system longevity, operator safety, and flawless welding performance. Never base your selection solely on the tonnage rating; the moment tells the true story.
|
 |
|
